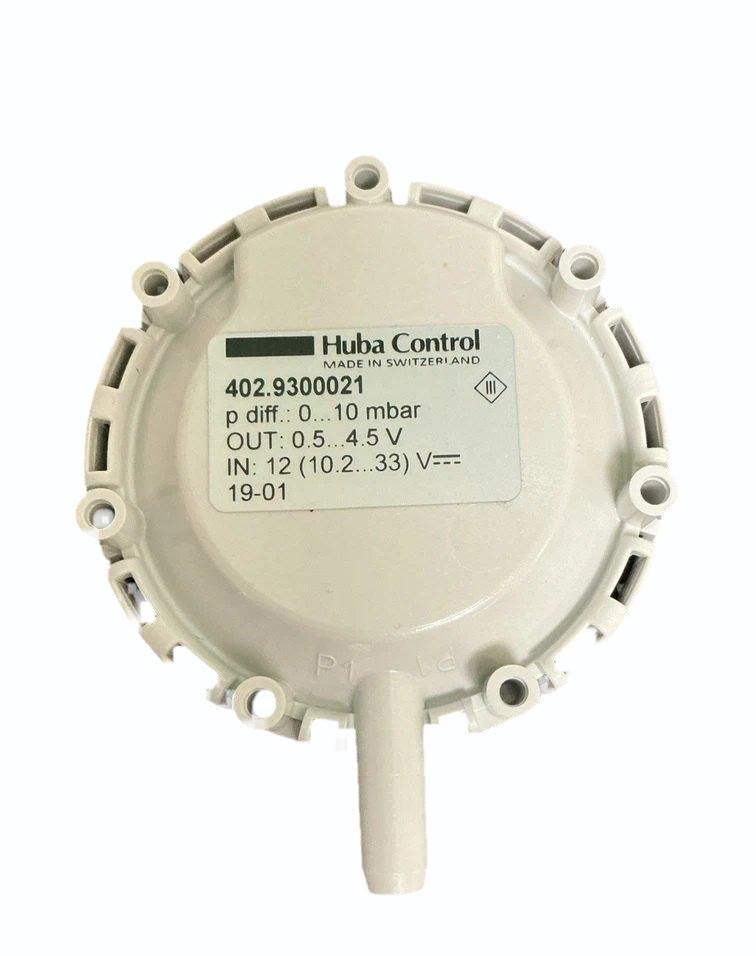

402.9300021 DIFFERENTIAL PRESSURE TRANSMITTER BY HUBA CONTROL
PRODUCT/SERVICE DESCRIPTION
THE HUBA CONTROL 402.9300021 IS A COMPACT DIFFERENTIAL PRESSURE TRANSMITTER DESIGNED FOR LOW-PRESSURE MEASUREMENT OF AIR AND NEUTRAL GASES. IT IS SUITABLE FOR HVAC, AIRFLOW MONITORING, VENTILATION, ERV SYSTEMS AND INDUSTRIAL AUTOMATION APPLICATIONS. THE MODEL IS REPORTED WITH A 0–10 MBAR RANGE, 0.5–4.5 V OUTPUT AND 10.2–33 VDC SUPPLY.
KEY FEATURES
- BRAND: HUBA CONTROL
- MODEL: 402.9300021
- TYPE: DIFFERENTIAL PRESSURE TRANSMITTER
- MEASURING RANGE: 0–10 MBAR
- OUTPUT SIGNAL: 0.5–4.5 V
- SUPPLY VOLTAGE: 10.2–33 VDC
- RESPONSE TIME: <10 MS
- CURRENT CONSUMPTION: <8 MA
- SENSOR WEIGHT: APPROX. 28 G
- MEDIA: AIR AND NEUTRAL GASES
- COMPACT DESIGN FOR LOW-PRESSURE MEASUREMENT
- PCB, ADAPTER AND BRACKET MOUNTING OPTIONS ARE AVAILABLE.
APPLICATIONS
- HVAC SYSTEMS
- VAB SYSTEMS
- ERV SYSTEMS
- AIRFLOW MONITORING
- VENTILATION SYSTEMS
- CLEAN ROOM PRESSURE MONITORING
- PHARMACEUTICAL INDUSTRY
- HOSPITALS AND MEDICAL APPLICATIONS
- FOOD AND BEVERAGE INDUSTRY
- TEXTILE INDUSTRY
- INDUSTRIAL AUTOMATION
- PROCESS CONTROL SYSTEMS
PRODUCT SPECIFICATIONS
| SPECIFICATION | DETAILS |
|---|---|
| BRAND | HUBA CONTROL |
| MODEL | 402.9300021 |
| PRODUCT TYPE | DIFFERENTIAL PRESSURE TRANSMITTER |
| PRESSURE RANGE | 0–10 MBAR |
| OUTPUT | 0.5–4.5 V |
| SUPPLY VOLTAGE | 10.2–33 VDC |
| RESPONSE TIME | <10 MS |
| CURRENT CONSUMPTION | <8 MA |
| MEDIA | AIR, NEUTRAL GASES |
| SENSOR WEIGHT | APPROX. 28 G |
| HOUSING MATERIAL | POLYCARBONATE (PC), POLYAMIDE (PA) |
| MEMBRANE | SILICONE |
| MEASURING ELEMENT | CERAMIC AL2O3 |
| INSTALLATION | PCB / ADAPTER / BRACKET |

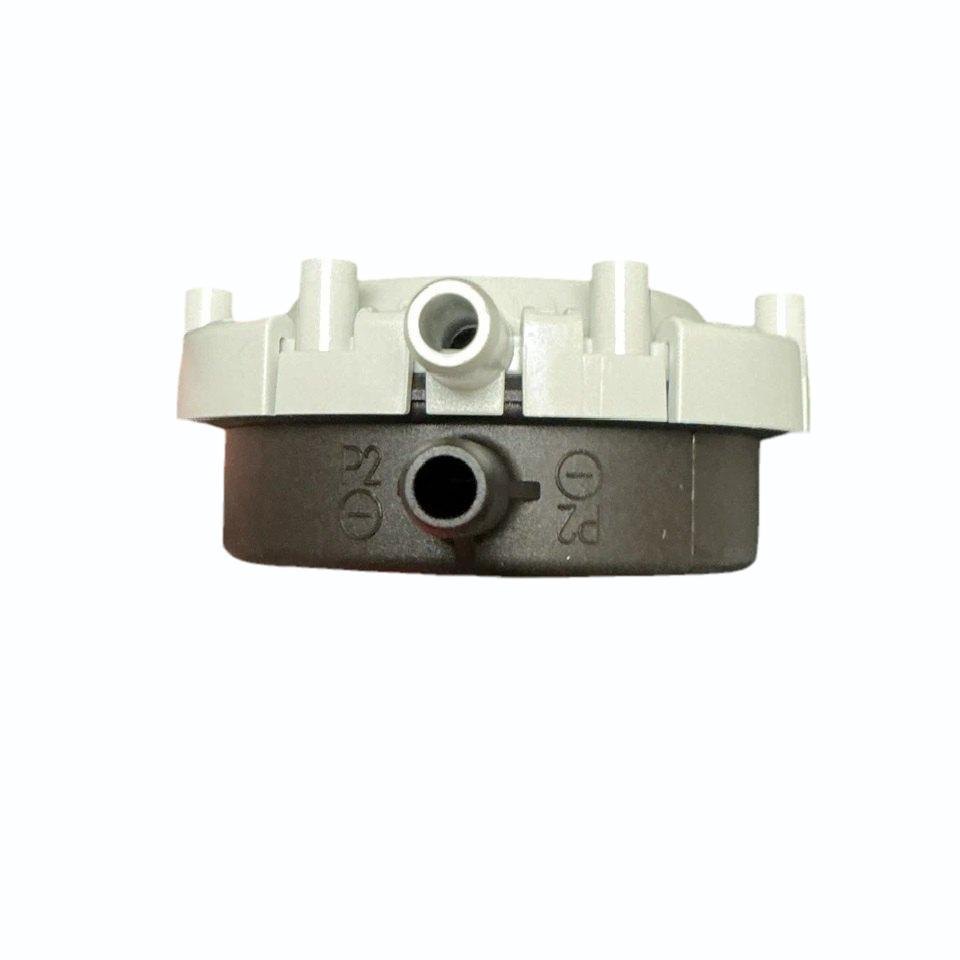

| PRESSURE CONNECTION | P1 TOP, PRESSURE CONNECTIONS DOWNWARDS |
| MANUFACTURER | HUBA CONTROL |
NOTE: AVAILABLE ONLINE SOURCES SHOW SOME INCONSISTENT RANGE ENTRIES FOR THIS MODEL, INCLUDING A GENERAL 0–50 MBAR TYPE-402 RANGE. FOR THE SPECIFIC 402.9300021 PRODUCT, THE LISTINGS IDENTIFY THE RANGE AS 0–10 MBAR. PLEASE VERIFY THE ORIGINAL HUBA CONTROL DATASHEET/NAMEPLATE BEFORE FINAL TECHNICAL OR COMMERCIAL USE.
